High-tech passive solar wall panels

Passive solar wall panel

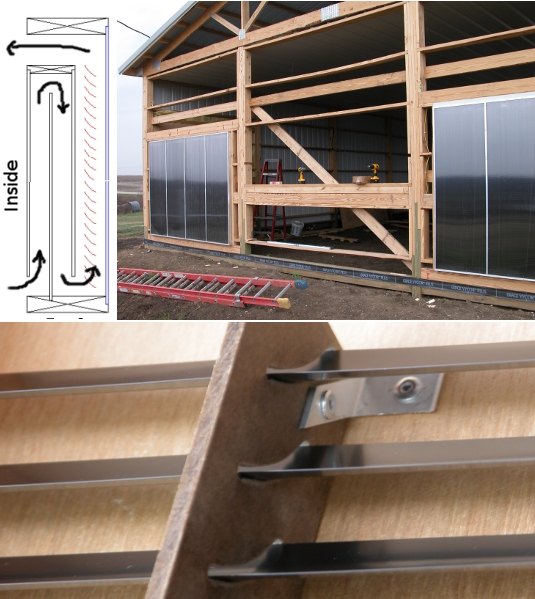

"Have a look at these passive solar wall panels." --- Roland

As much as I love big walls of windows, I suspect Roland is on the right track. Optimal passive-solar design would likely involve one window for a view combined with multiple passive-solar wall panels for cold-weather heating.

And I'm glad he passed on that in-depth writeup, too, because my understanding of passive-solar wall panels was seriously old-school. The angled fins make a lot of sense (for geeky reasons explained in depth at the website above), as does the vertical orientation and the use of UV-protected twin-wall polycarbonate sheets instead of glass.

The only problem is that the in-depth design starts to make this look like a project that wouldn't get done before serious cold weather hits. So I did some googling and found this panel that includes the angled fins, at least, if not some of the other features. We'll have to digest on it a little and decide whether the high price tag is worth getting the unit installed this year.

Anna Hess's books
Want more in-depth information? Browse through our books.

Or explore more posts by date or by subject.

About us: Anna Hess and Mark Hamilton spent over a decade living self-sufficiently in the mountains of Virginia before moving north to start over from scratch in the foothills of Ohio. They've experimented with permaculture, no-till gardening, trailersteading, home-based microbusinesses and much more, writing about their adventures in both blogs and books.

Want to be notified when new comments are posted on this page? Click on the RSS button after you add a comment to subscribe to the comment feed, or simply check the box beside "email replies to me" while writing your comment.

Why rush it? There will be a next winter. :-)

As I've seen time and time again in my career, if you can't find the time and resources to do things right, you will have to find the time and resources to do it twice (or more).

I like Mr. Dovey's passive design. It is obviously the result of reasoning and experiment. The latter being the crucible in which ideas are tested.

From an engineering point of view, the amount of solar energy outside of summer is limited. As you have experienced with your solar panels. That implies that to use that energy effectively, energy capture should be combined with proper insulation to mitigate heat loss into the environment and enough inside mass to store the heat.

What I suggest is that you use this winter to measure how much energy you need to heat your home as-is. If you still have your solar panels, hang one on the south facing wall and measure the energy output. That can be translated back into solar energy input on that wall per unit of area. With these two figures you can see how much wall area you have to dedicate to solar collectors. It could be that the results point out that it would be wiser to work on heat loss mitigation first.

If you can tolerate a not completely passive design, using a fluid as a heat capture, transfer and storage medium could be very useful. Water is an excellent heat storage medium. Combined with radiant heating in the floor could make for a very comfortable home. You want to capture as much energy as possible during the day and release it during the night.

If there is too much sun, you can simply switch off the pump or divert the flow to produce hot water.

Comment by Roland_Smith Sat Sep 29 07:46:39 2018

Our house has a similar design to this, plus 450cy of rocks for thermal mass and a sunroom. My HUGE caveat is that our part of the world (I’m about 4 hours north of you in Michigan) is really not sunny enough for reliable passive solar in the winter. Something like this design could work ok when it is sunny and the sun is at the right angle - a couple hours a week - but the rest of the time, if it’s not sealed off really well, it will pump cold air in.

The part of our system that works the best is the simple sunroom. We have exterior-grade patio doors between it and the living room. When it’s warm out there (generally 20+ degrees and sunny), we open the doors. Otherwise, the doors stay firmly shut all winter. And also most of the summer, when the sunroom is far too hot. I wouldn’t do a wall of south-facing windows without a good way to block the heat in the summer.

We blocked off all vents from the solar collector/rock room because the air blows all the time, and usually about 40-50 degrees in the winter. Yes, it’s warmer than the air outside but still much colder than inside.

Here’s the plan for the house:;size=100;id=umn.31951p007429573;page=root;seq=156;num=146

Some details on the passive solar features:

Comment by Emily Springfield Sat Sep 29 10:38:26 2018

I'm planning to add insulating Kume curtains to my windows this winter. I saw them in action at Living Energy Farm; with the curtain down the room was warm all night, and raising it only a little immediately cooled the room down. The idea is to trap a layer of still air in between the window the curtian, which acts as insulation. So you need a wide window sill for the curtian to fit snugly inside without leaking air.

I'd say, make sure to get good double glazed windows (or triple) and design window sills that will allow adding kume curtians if you need them.

The main downside of combining the curtians with passive solar is they have to be raised/lowered every day.
